DAB EsyBox

This blueprint integrates with DAB EsyBox intelligent pump systems through the DConnect cloud service, providing real-time telemetry and pump control.

Beyond basic monitoring, it enables preventive diagnostics for cold and hot water systems. The built-in pressure alerts help identify:

• Low water pressure — potential leaks in the plumbing system
• High pressure spikes — problems with the bladder tank or safety relief valve

Early detection of these conditions helps avoid flooding and premature wear of the water system.

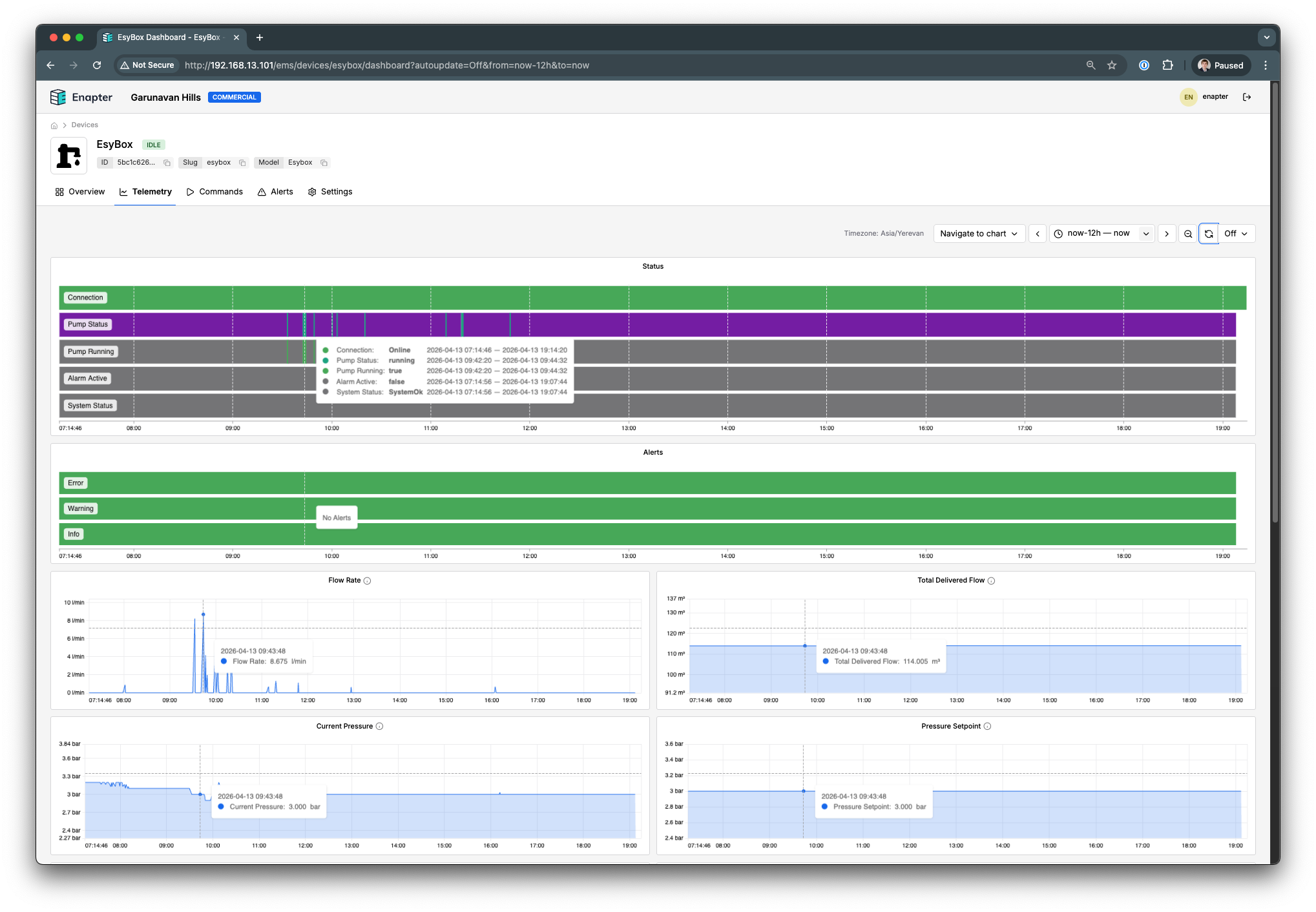

All telemetry is stored locally on the Enapter Gateway and synced to Enapter Cloud, building a complete operational history of the pump — energy consumption, run hours, flow volumes, and pressure trends. This data is available for on-demand analytics and reporting, supporting maintenance planning and system performance audits.

Supported Devices

• DAB EsyBox
• DAB EsyBox Mini / Mini 3
• DAB EsyBox Max
• DAB EsyBox Diver

Requirements

• Enapter Virtual UCM (ENP-VIRTUAL)
• DAB EsyBox pump with internet connectivity (built-in WiFi or DConnect Box)
• Active DConnect account

Monitored Data

Telemetry	Description	Unit
Flow Rate	Current water flow rate	L/min
Pressure	Current water pressure	bar
Pressure Setpoint	Target pressure setpoint	bar
Total Delivered Flow	Accumulated water flow	m3
Heatsink Temperature	Pump heatsink temperature	C
Water Temperature	Water temperature	C
Power	Current power consumption	W
Energy Consumption	Total energy consumed	kWh
Power On Hours	Total hours powered on	hours
Run Hours	Total hours running	hours
Start Count	Total number of pump starts	-
Pump Running	Whether pump is currently running	boolean
Alarm Active	Whether any alarm is active	boolean
Status	Operating status (idle, running, alarm, standby, disabled)	-

Commands

Command	Description
Start Pump	Enable pump operation
Stop Pump	Disable pump operation
Configure	Set DConnect credentials and device selection

Control commands require a Professional/Installer role account in DConnect.

Setup

1. Create a DConnect account at internetofpumps.com
2. Ensure your pump is connected and visible in DConnect
3. Add a Virtual UCM in Enapter Cloud and select this blueprint
4. Run the Configure command with your DConnect email and password
5. Leave Installation ID and Device Serial empty for auto-discovery, or specify them manually

Tip: Create a separate DConnect account for Enapter to avoid conflicts with mobile app sessions.

References

• DAB Pumps Official Website
• Internet of Pumps - DConnect
• Home Assistant DAB Pumps Integration
• Enapter Developer Documentation

Support

For issues with:

• Enapter Blueprint: Contact Enapter support at support@enapter.com
