Starlink Gen4 Dish
SpaceX Starlink Generation 4 satellite dish with real-time connectivity monitoring via the local gRPC API. Reports throughput, latency, obstruction statistics, GPS, and antenna pointing data.
Installation Guide
View on Github
This blueprint integrates with the SpaceX Starlink Generation 4 satellite dish using its local gRPC API, providing real-time monitoring of connectivity, signal quality, obstruction statistics, and antenna pointing.
Requirements
- Starlink Gen4 dish (rev4_catapult hardware)
- Enapter Gateway version 3.0.0-rc1 or later (required for HTTP/2 support)
- Device Running on Enapter Virtual UCM running on the same network as the dish
- Dish is accessible at 192.168.100.1:9200 (default Starlink local network)
Network Setup
The Starlink dish creates a local network with the gateway at 192.168.100.1. The Enapter Virtual UCM must be connected to the Starlink router (or directly to the dish Ethernet port) so that 192.168.100.1 is reachable.
No additional configuration is required — the dish IP address is fixed.
API Protocol
The blueprint communicates with the dish using:
- Protocol: gRPC over HTTP/2 (cleartext)
- Endpoint: http://192.168.100.1:9200/SpaceX.API.Device.Device/Handle
- Method: GetStatus (polled every 30 seconds)
The request and response are encoded as Protocol Buffers. The blueprint implements a minimal protobuf binary decoder in Lua without external dependencies.

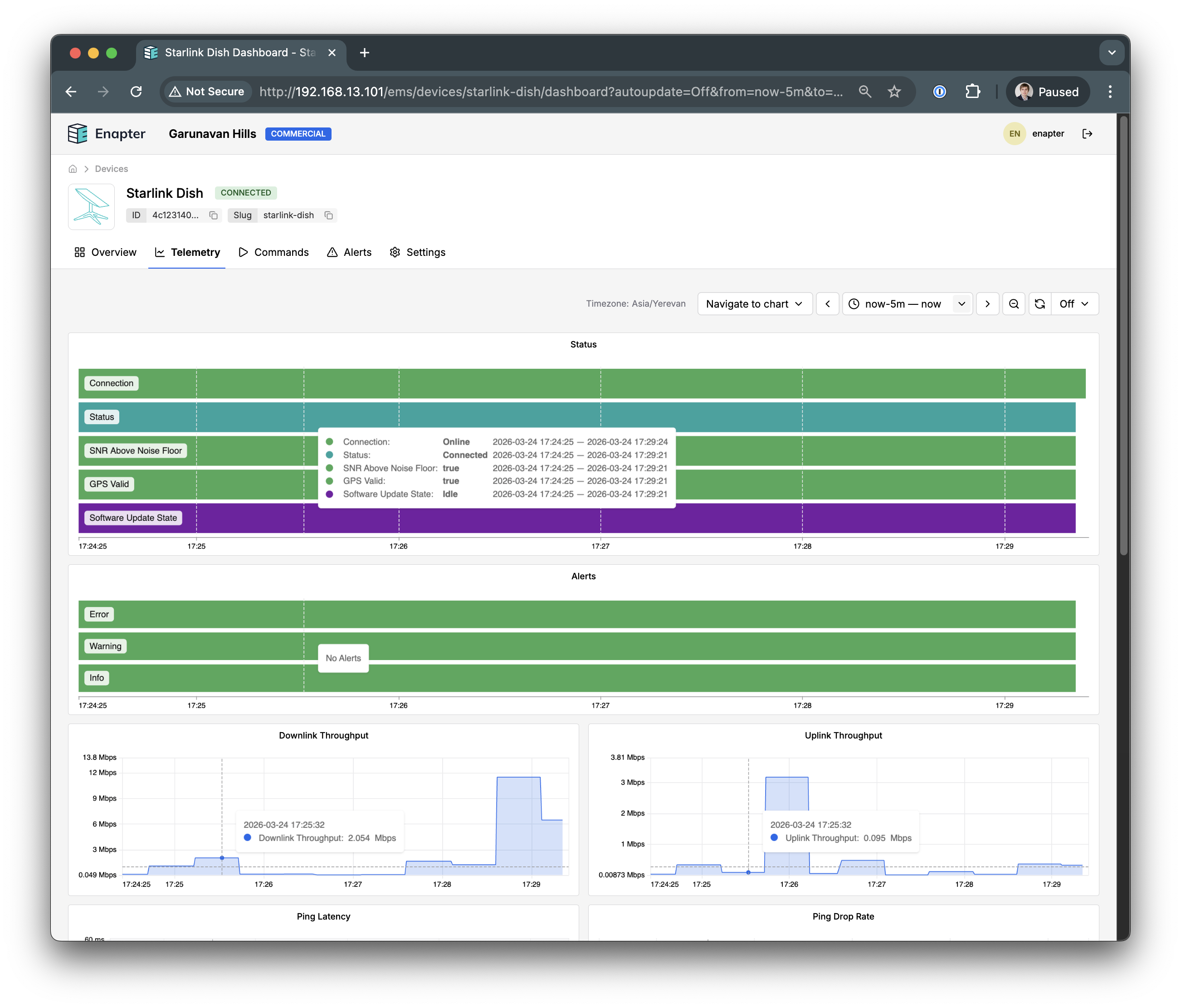

Monitored Data
Connectivity
| Telemetry | Description |
|---|---|
| Downlink Throughput | Current download speed (Mbps) |
| Uplink Throughput | Current upload speed (Mbps) |
| Ping Latency | Round-trip latency to SpaceX PoP (ms) |
| Ping Drop Rate | Packet loss percentage |
| Status | Connectivity status from SpaceX service (Connected, Roam Restricted, etc.) |
Signal & Antenna
| Telemetry | Description |
|---|---|
| Obstruction | Percentage of sky view blocked |
| Antenna Azimuth | Dish pointing azimuth (degrees) |
| Antenna Elevation | Dish pointing elevation (degrees) |
| SNR Above Noise Floor | Signal quality indicator |
System
| Telemetry | Description |
|---|---|
| GPS Valid | GPS lock status |
| GPS Satellites | Number of GPS satellites tracked |
| Uptime | Time since last reboot (seconds) |
| Software Update State | Firmware update progress |
Commands
| Command | Description |
|---|---|
| Reboot Dish | Sends a reboot command to the dish |
References
- Starlink gRPC API tools — community reverse-engineered gRPC interface
- Enapter Virtual UCM
